TV Logic Monitor 17 inch
Sale!
TV Logic Monitor 17 inch
Original price was: ₹1,500.00.₹1,000.00Current price is: ₹1,000.00.
-33%1 in stock

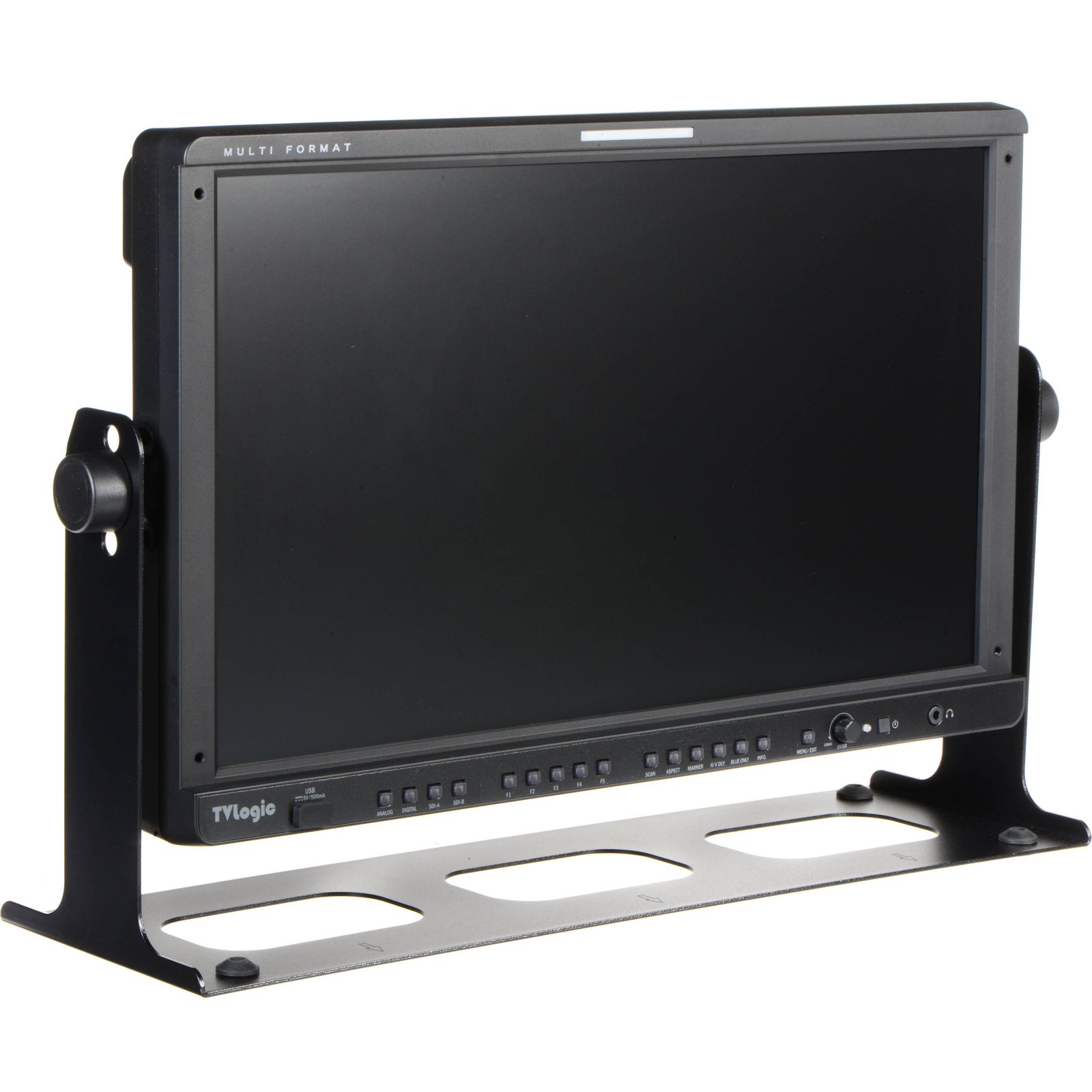

TVLogic LVM-170A Specs
| LCD Size | 17.3″ / 44 cm |
| Video System | Not Specified by the Manufacturer |
| Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Pixel Pitch | 0.199 mm |
| Color Depth | 16.7 million |
| Viewing Angle (H x V) | 178° / 178° |
| Brightness | 300 cd/m² |
| Contrast Ratio | 700:1 |
| Display Area | 381 x 214 mm |
| Input and Output Connectors | Inputs: 3 x BNC: CVBS / S-Video / Component / RGB(D-TV) 2 x BNC: SDI A/B Channel Input 1 x HDMI Input 1 x DVI – I InputOutput: 3 x BNC: CVBS / S-Video / Component / RGB(D-TV) 1 x BNC: 3G/HD/SD-SDI Output |
| Input Signal | Analog: CVBS / S-Video / Component / RGB(D-TV) 3G-SDI: 2.970 Gb/s HD-SDI: 1.485 Gb/s SD-SDI: 270 Mb/s DVI-Analog: 640 x 480 / 720 x 400 / 800 x 600 / 1024 x 768 / 1280 x 1024 / 1366 x 768 DVI-D (PC & HDMI): 640 x 480 / 720 x 400 / 800 x 600 / 1024 x 768 / 1280 x 768 / 1280 x 1024 / 1366 x 768 / 1080p (23.98/24/25/30/50/60)/ 1080i (50/59.94/60) / 720p (50/60) / 480i (60) / 480p (60) / 576i (50) / 576p (50) HDMI (PC & HDMI): 640 x 480 / 720 x 400 / 800 x 600 / 1024 x 768 / 1280 x 768 / 1280 x 1024 / 1366 x 768 / 1080p (23.98/24/25/30/50/60) / 1080i (50/59.94/60) / 720p (50/60) / 480i (60) / 480p(60) / 576i(50) / 576p (50) |
| Analog Input | CVBS: 1.0 V p-p (With Sync) NTSC. PAL S-Video: 1.0 V p-p (Y With Sync), 0.286/0.300 V p-p (Chroma) Component Video: 1.0 V p-p (Y With Sync), +350mV (Pb,Pr) RGB: 1.0 V p-p (G With Sync), 0.7 V p-p (B,R) |
| SDI Input Signal Formats | SMPTE-425M-A/B: 1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/ 29.97sF/25sF/24sF/23.98sF) / 1080i (60/59.94/50) SMPTE-274M: 1080i (60/59.94/50) / 1080p (30/29.97/25/24/24sF/ 23.98/23.98sF) SMPTE-296M: 720p (60/59.94/50) SMPTE-260M: 1035i (60/59.94) SMPTE-125M: 480i (59.94) ITU-R BT.656: 576i (50) 2K Format: 2048 x 1080p (24/24sF/23.98/23.98sF) |
| Audio In | Embedded audio / analog stereo (Phone Jack) |
| Audio Out | Analog stereo (Phone Jack) Internal speaker (Stereo) |
| Power Requirements | 12 / 24 VDC 100 to 240 VAC (50 to 60 Hz) |
| Power Consumption | Approximately 60 W |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Dimensions | 16.6 x 10.4 x 2.9″ / 42.2 x 26 x 7.4 cm without stand 19 x 12.2 x 5.4″ / 48.3 x 31 x 13.7 cm with stand |
| Weight | 9.25 lb / 4.19 kg |
Packaging Info
| Package Weight | 13.7 lb |
| Box Dimensions (LxWxH) | 21.3 x 18 x 11.5″ |
