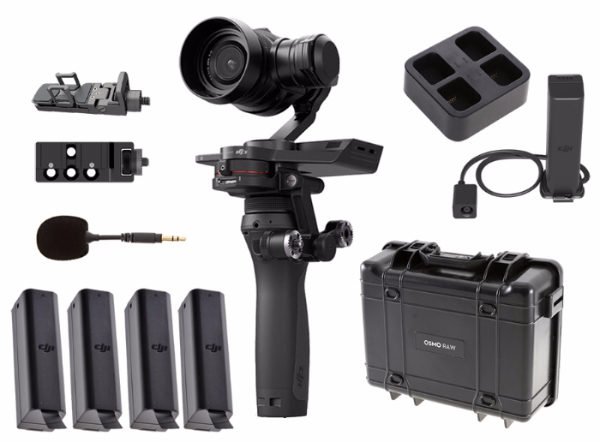

Osmo 4k X5R Gimbal
Osmo Pro
Handle
| Dimensions | 2.4 x 1.9 x 6.4 inches (61.8 x 48.2 x 161.5 mm) |
|---|---|
| Weight (including battery) | 201 g |
Camera
| Sensor | Type 4/3 CMOS sensor |
|---|---|
| Lens | DJI MFT 15mm f/1.7 ASPH * |
| Panasonic Lumix 15mm f/1.7 * | |
| Olympus M. ED 12mm f/2.0 | |
| Olympus M.Zuiko 17mm f/1.8 * | |
| Olympus M.Zuiko ED 14-42mm f/3.5-5.6 EZ * | |
| (For still photography) | |
| Olympus M.Zuiko 25mm f1.8 | |
| Olympus M.Zuiko 45mm f1.8 | |
| (For still photography) | |
| *Balance ring required | |
| ISO Range | 100-25600 |
| Electronic Shutter Speed | 8s -1/8000s |
| Max Image Size | 4608×3456 |
| Still Photography Modes | Single shot |
| Burst shooting: 3/5/7 frames | |
| Auto Exposure Bracketing (AEB): 3/5 bracketed frames at 0.7EV bias | |
| Interval (5/7/10/20/30s) | |
| Video Resolution | 4K（4096×2160）24/25p |
| 4K（3840×2160）25/30p | |
| FHD: 1920×1080 24/25/30/48/50/60p | |
| Max Video Bitrate | 60 Mbps |
| Supported File Systems | FAT32（<=32 GB）；exFAT（> 32 GB） |
| Photo Formats | JPEG、DNG（RAW） |
| Video Formats | MP4/MOV（MPEG-4/AVC/H.264F） |
| Supported SD Cards | Micro SD; Max capacity: 64 GB; Class 10 or UHS-1 rating required. |
| Operating Temperature | 32° F to 104° F (0° to 40° C) |
| Audio Output | 48 KH; AAC |
Intelligent Battery
| Model | HB02-542465 |
|---|---|
| Type | LiPo |
| Capacity | 1225 mAh |
| Energy | 14.1 Wh |
| Voltage | 11.55V |
| Charging Temperature | 41° F to 104° F (5° to 40° C) |
| Operating Temperature | 32° F to 104° F (0° to 40° C) |
Gimbal
| Weight | 526 g |
|---|---|
| Output Power (With Camera) | Static: 8 W, Peak: 13 W |
| Angular Vibration Range | ±0.02° |
| Mounting | Detachable |
| Controllable Range | Tilt: -90°to +30°; Pan: ±320°; Roll: ±40° |
| Mechanical Range | Tilt: -130°to +45°; Pan: ±330°; Roll: ±45° |
Wi-Fi Video Link
| Operating Frequency | 2.412-2.462 GHz; 5.180-5.805 GHz |
|---|---|
| Max. Transmission Distance | 2.4G: 82 feet (25 m); 5G: 328 feet (100 m) |
| Transmitter Power(EIRP) | 2.4G：8 dBm; 5G: 12 dBm |
Battery Charger
| Model | OS1C11 |
|---|---|
| Input | 100－240V, 50/60Hz |
| Output | 12.6/13.2V, 0.8A |
Osmo Raw
Handle
| Dimensions | 2.4 x 1.9 x 6.4 inches (61.8 x 48.2 x 161.5 mm) |
|---|---|
| Weight (including battery) | 201 g |
Camera
| Sensor | Type 4/3 CMOS sensor |
|---|---|
| Lens | DJI MFT 15mm f/1.7 ASPH * |
| Panasonic Lumix 15mm f/1.7 * | |
| Olympus M. ED 12mm f/2.0 | |
| Olympus M.Zuiko 17mm f/1.8 * | |
| Olympus M.Zuiko ED 14-42mm f/3.5-5.6 EZ * | |
| (For still photography) | |
| Olympus M.Zuiko 25mm f1.8 | |
| Olympus M.Zuiko 45mm f1.8 | |
| (For still photography) | |
| *Balance ring required | |
| ISO Range | 100-25600 |
| Electronic Shutter Speed | 8s -1/8000s |
| Max Image Size | 4608×3456 |
| Still Photography Modes | Single shot |
| Burst shooting: 3/5/7 frames | |
| Auto Exposure Bracketing (AEB): 3/5 bracketed frames at 0.7EV bias | |
| Interval (5/7/10/20/30s) | |
| Video Resolution | 4K (4096×2160)24/25p |
| 4K (3840×2160)25/30p | |
| FHD: 1920×1080 24/25/30/48/50/60p | |
| Max Video Bitrate | 2.4Gbps (Average: 1.7 Gbps) |
| Supported File Systems | FAT32 (<=32 GB)；exFAT (> 32 GB) |
| Photo Formats | JPEG, DNG |
| Video Formats | MP4/MOV（MPEG-4/AVC/H.264F）, JPEG-Lossless (RAW) |
| Supported SD Cards | Micro SD: Max capacity: 64 GB; Class 10 or UHS-1 rating required. |
| SSD: 512 GB (compatible with Zenmuse X5R camera) | |
| Operating Temperature | 32° F to 104° F (0° to 40° C) |
| Audio Output | 48 KH; AAC |
Intelligent Battery
| Model | HB02-542465 |
|---|---|
| Type | LiPo |
| Capacity | 1225 mAh |
| Energy | 14.1 Wh |
| Voltage | 11.55V |
| Charging Temperature | 41° F to 104° F (5° to 40° C) |
| Operating Temperature | 32° F to 104° F (0° to 40° C) |
