Canon EOS C200

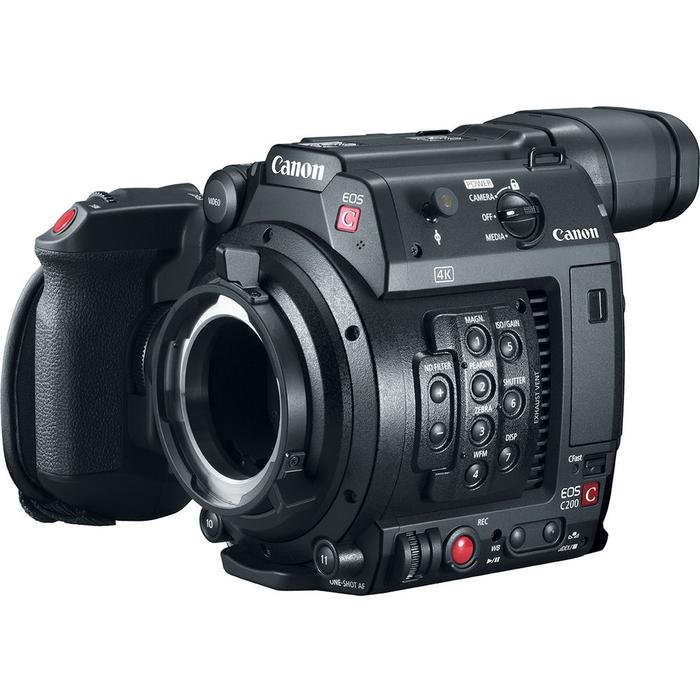

Canon ‘s EOS C200 Cinema Camera features a built-in EVF, 4″ LCD screen, top handle, and a Super 35mm CMOS sensor. The PL lens mount on the EOS C200 offers compatibility with virtually all 35mm PL-mount lenses, both vintage and modern, although it does not incorporate pins for electronic communication with or control of the lens. The Super 35mm sensor is paired with Canon’s Dual DIGIC DV 6 image processor, allowing it to capture and record up to DCI 4K resolution.

The C200 can also record Canon’s Cinema Raw Light internally via its single CFast card slot. The camera incorporates two SD card slots for recording UHD 4K and HD MP4 video. A built-in EVF enables the camera to maintain a small footprint when you shoot. However, the included removable 4″ LCD screen, top handle, and camera grip make the C200 versatile for larger shoots. You can output video via the camera’s SDI output, and the built-in XLR connectors provide two channels of audio at line, mic, and mic +48V level. A built-in Ethernet connector provides input/output control.

Main Features

Canon Super 35mm CMOS Sensor

Modeled on the Super 35mm motion picture film standard, the Canon CMOS sensor has an active image size of 24.4 x 13.5mm. It features 4096 x 2160 resolution to deliver Cine 4K images, as well as supporting Ultra HD (3840 x 2160), and Full HD (1920 x 1080).

Dynamic Range, ISO Range

The C200 features a dynamic range of approximately 13 stops, and an ISO range of 160 to 25,600. You can also select an expanded ISO range of 100 to 102,400. It supports Wide DR Gamma, Canon Log, and Canon Log 3.

Dual Canon DIGIC DV 6 Image Processor

The camera features Dual DIGIC DV 6 processors to handle the internal data processing.

Ultra-High-Resolution EVF

The EOS C200 features a built-in 0.46″, 1.23MP color EVF and 100% field of view coverage for comfortable viewing and accurate judgment of composition, focus, and color. The angle of the viewfinder is adjustable for additional user comfort.

4″ LCD Touchscreen Camera Grip and Top Handle

Included with the C200 is a removable 4″ touchscreen LCD viewfinder. Also included is a camera control handgrip and a removable top handle.

Rich Audio Controls

Built directly into the C200 are two XLR audio inputs with +48V phantom power, and a 3.5mm microphone terminal. Audio is recorded uncompressed in 16-bit PCM format at 48 kHz for high fidelity sound. Both XLR inputs, as well as the mic terminal, have the option for automatic as well as manual gain control.

Canon Cinema Raw Light

This codec allows you to record raw data internally to a CFast 2.0 card via the camera’s single CFast card slot. The CFast card slot enables capturing 4K DCI in Canon’s Cinema Raw Light format.

MP4 Recording

• UHD 4K and Full HD recording onto SD cards available via both SD card slots
• Slow motion recording, pre-recording, frame recording, interval recording

Recording Functions

Relay recording and double-slot recording.

High-Speed Shooting

You can choose to record at 120/100p when recording in Full HD.

White Balance

• AWB
• Kelvin setting (2000K to 15000K / -20 to +20 cc)
• Daylight
• Tungsten
• Set A
• Set B

Other Recording Functions

• Custom picture setting
• Black balance adjustments
• Color bars
• Peaking display
• Zebra display
• My Menu setting
• Waveform monitor display
• Assignable buttons (1�17)
• Key lock
• Marker display
• Enlarged display
• Custom display
• Peripheral illumination correction
• GPS support (GP-E2)
• Monaural microphone

Playback Operations

Normal playback, fast-forward (at speeds of 5x, 15x, 60x), fast-reverse (at speeds of 5x, 15x, 60x), frame forward, frame reverse, rec review.

Clip Display

3×4 (clip) index screen (raw/MP4/photo)
